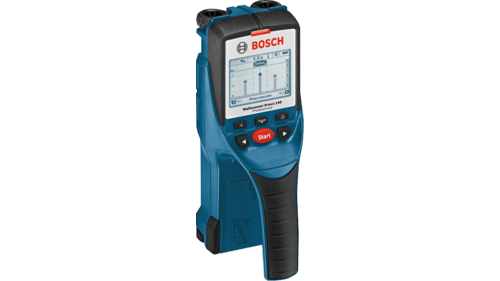

Rebar Locator – (Bosch D-TECT150)
The Bosch wall/floor scanner is designed for detecting a variety of materials with a wide band range. With seven operating modes of detection this device is ideal for the trades.
BENEFITS

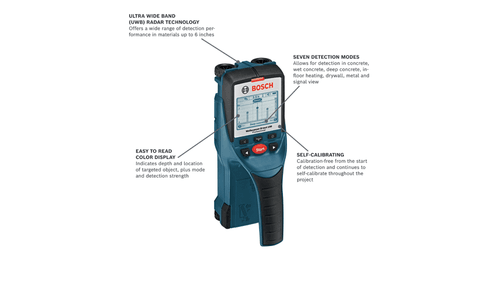

- Bosch Ultra-Wide Band (UWB) Radar Technology — offers a wide range of detection performance up to 6 In. wide
- Detects ferrous and non-ferrous metals, wood, live wiring and plastic pipes — metal detection in concrete up to 6 In. deep – note that live wires may not be detected in certain conditions such as in metal conduit or behind metalized or conductive surface
- Seven detection modes — concrete, wet concrete, deep concrete, in-floor heating, drywall, metal and signal view
- Large illuminated display — displays the exact location of the object’s depth, center, relative width and edge
| Dimensions | 4.7″ x 8.7″ x 3.8″ |
| Height | 3.8″ |
| IP Rating | IP 54 |
| Length | 4.7″ |
| Max Detection Depth Copper Wiring | Up to 3-1/8-in (80mm) |
| Max Detection Depth Ferrous Metals (Steel) | Up to 6″ (150mm) |
| Max Detection Depth Non-Ferrous Metals (Copper) | Up to 6″ (150mm) |
| Max. Detection Depth (Water-Filled Plastic Pipe) | Up to 2-3/8″ (60mm) |
| Size | 4.7 In. x 8.7 In. x 3.8 In. |
| Weight | 1.6lb |
| Width | 8.7″ |
| Includes | (1) D-TECT150 Wall/Floor Scanner with Radar, (4) AA Batteries, (1) Carry Bag |
