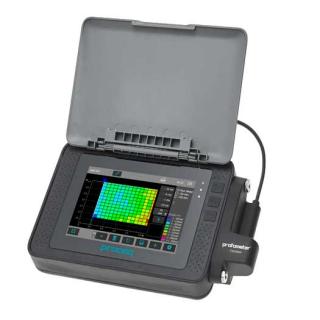

Rebar Corrosion Detector – Profometer Corrosion
Profometer Corrosion is the most advanced instrument for corrosion analysis based on half-cell method which is used to identify active corrosion of rebars based on the electro chemical properties of reinforced concrete for assisted measurements with rod and wheel electrodes. In addition to the basic electrode (rod or wheel) that are based on a Copper/ Copper sulphate half – cell, the use of unique one- and four-wheel electrodes enable highest on-site productivity on large areas.
Profometer Corrosion is advanced half-cell measuring instrument with corrosion scan and statistical views for immediate on-site data interpretation, customizable and cumulative distribution and chipping graph views. The instrument is used for on- site mapping of the corrosion potential.
Profometer Corrosion consists of interface box, cable coil 82 ft /25 m with clamp, USB cable, DVD with software, documentation carrying strap and carrying case.
Profometer corrosion can be purchased as a standalone device or Profometer 600
- Intuitive user-friendly interface for data acquisition
- Optimized workflow for rod and wheel measurements
- Customizable text can be entered for any specific locations
- Flexible features enable the mapping of any irregular geometry
- Improved digital filtering to remove the effect of external noise (civil and industrial power sources)
- Create custom reports with exported graphs and charts
- 7” colour rugged touchscreen unit (800 x 480 pixels) with dual core processor
- Internal 8 GB flash memory
- USB host / device and Ethernet connectivity
| Voltage measuring range | -1000 to + 1000 mV |
| Voltage resolution | 1 mV |
| Impedance | 100 MΩ |
| Sampling rate | 900 Hz |
| Measured Quantity | Corrosion potential [mV] |
| Accuracy | ±1 mV |
| Available Upgrades | To Profometer 6 Cover Meters |
| Standards and guidelines | ASTM C876, RILEM TC 154-EMC,
DGZfP B3, SIA 2006, UNI 10174, JGJ/T 152, JSCE E 601, CE certification |
| PC Software | Profometer Link Reporting software for data analysis, combined data evaluation and reporting on any third-party software |
| Display | 7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor |
| Memory | Internal 8 GB flash memory |
| Connections | USB host / device and Ethernet |
| Measuring Range | -999 to +999 mV |
| Probes / Electrodes | In addition to the basic rod electrode, unique one and four-wheel electrodes enable the highest on-site productivity on large areas |
