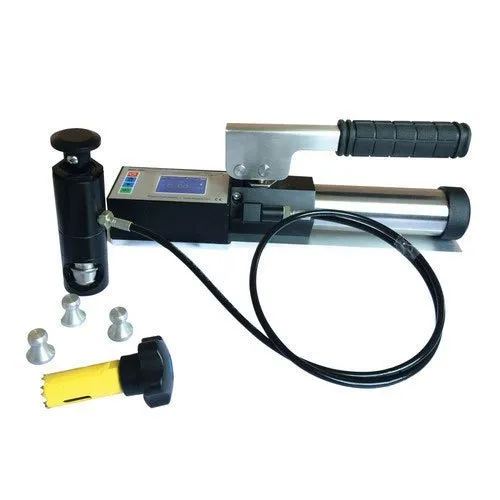

We offers Digital Pull-Off Adhesion Tester. Digital Pull-Off Adhesion
Tester BGD-500 is a portable, hand-operated instrument which is used to measure the force required
to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The
pressure is displayed on a digital LCD and represents the coating’s strength of adhesion to the
substrate. Pull-Off Adhesion Tester is a easy to operate and fully portable, provides a test results
values for adhesion.
High precision digital pull-off type measuring instruments for adhesion and bond strength testing of
all types of films, coatings, laminates, adhesives, metals plastic coatings, concrete coats, and mortars
and plasters and other materials. The self-adjusting feature results in extremely accurate and
reproducible adhesion test results. The test is performed by securing a self-aligning quick coupling
(dolly) perpendicular to the surface of the coating with an adhesive. After the adhesive is cured, a
testing apparatus is attached to the loading fixture and aligned to apply tension perpendicular to the
test surface. BGD 500 conforms to international standards including ASTM D4541/D7234, ISO
4624/16276-1, AS/NZS 1580.408.5 and others

Main Technical Parameters

■ Dolly Size： 20mm（Standard）；10mm、14mm、50mm（Optional）
■ Resolution： 0.01MPa（1psi）■ Accuracy： ±1% Full scale
■ Max. Pull-off Pressure：Φ10mm dolly →0-80 MPa；Φ14mm dolly→0-40 MPa；
Φ20mm dolly→0-20 MPa；Φ50mm dolly→0-3.5 MPa；
■ Power: Built-in rechargeable lithium battery, and standard configuration charging adapter.
■ Adhesion Tester Size：360mm×75mm×115mm（L x W x H）
■ Adhesion Tester Weight：3KG

In The Box:

BGD 500 Digital Pull Off Adhesion Tester
BGD 1522 20mm Dolly（20 pcs/package）
BGD 1526 Cutting Tool
BGD 1527 3M Adhesive
OPTIONAL
BGD 1520 10mm Dolly（10 pcs/package）
BGD 1521 20mm Dolly（10 pcs/package）
BGD 1523 50mm Dolly（5 pcs/package）
