MODEL: QCC-ST-027

ASTM D1556, AASHTO T191

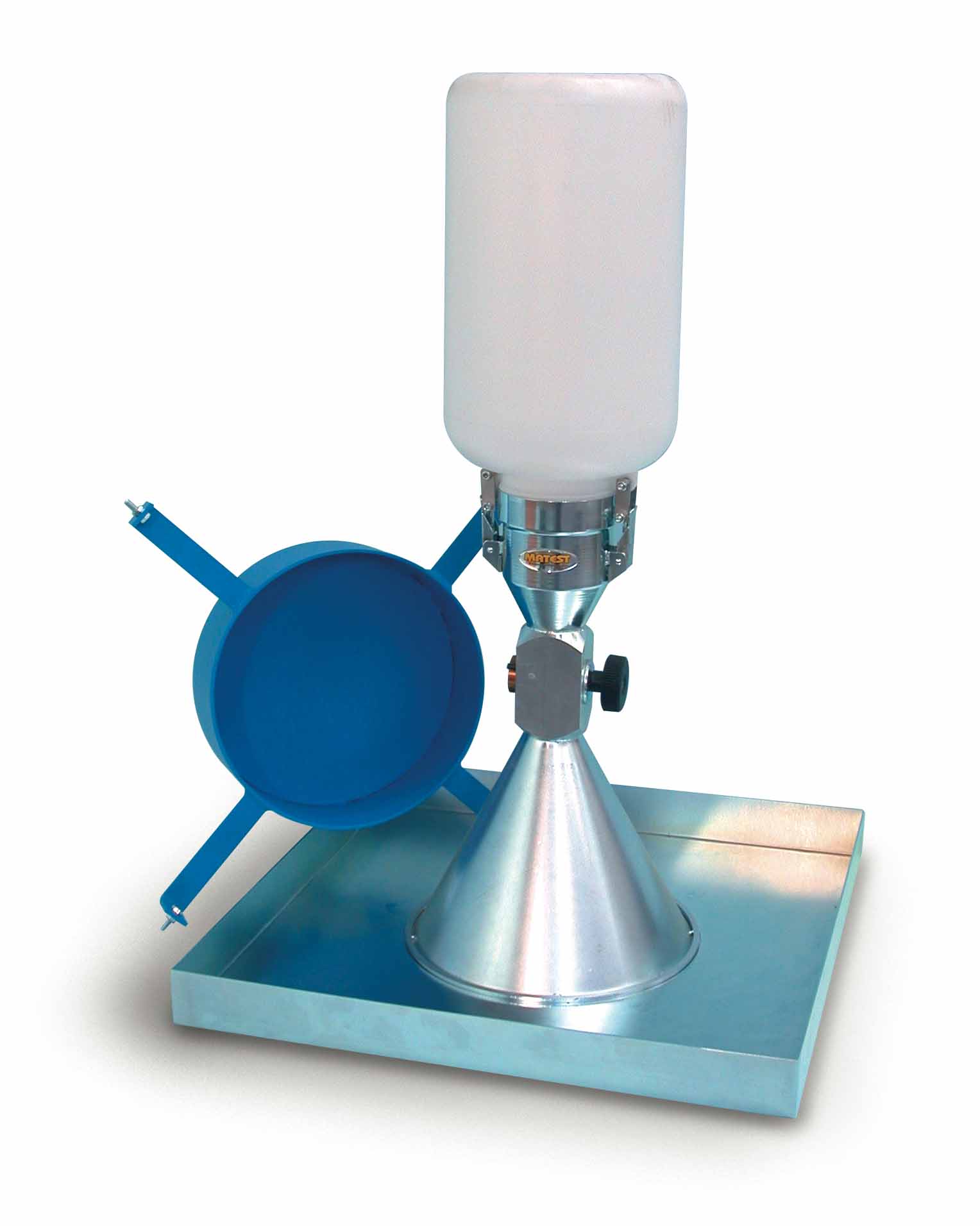

The Sand Density Cone and accessories are used for determination of the insitu (in-place) density of soils. The apparatus is restricted to tests in soils containing particles not larger than 2″ (50.8 mm) in diameter. The Sand Density Cone consists of a double cone assembly with a brass valve and comes supplied with a one-gallon (4,000 cm3) capacity sand jug. The Field Density Plates are used in conjunction with the Sand Density Cones. The center opening of the plate can be used as a template to control the diameter of the hole and the plate itself is used as a shelf to prevent the loss of soil during the removal operation.
