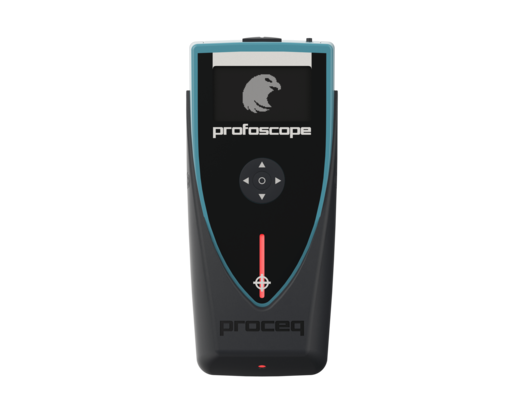

Proceq Profoscope Rebar Detector

The Profoscope+ is a fully integrated rebar locator with data storage. To increase the efficiency on the construction site this enhancement of the Profoscope not only offers real time visualization of rebar’s, but also automatic data collection.

ProfoLink: The included Window based software ProfoLink offers the possibility to comfortably download, edit and present the data measured by the rebar locator. Data exchange can be done easily by connecting the rebar locator Profoscope+ directly to the USB-port of the PC or by reading out the integrated Micro SD memory card.

Writing down measuring results of testing series is a time consuming business that can be an unnecessary source of errors. The various data storage modes of the rebar locator Profoscope+ make note taking obsolete. This cordless rebar detector is ideally suited for one-handed operations, keeping the other hand free for marking rebar.

Features

• A rebar detector with real-time visualization of the rebars beneath the instrument
• Visual indication of rebars in close proximity
• The Profoscope is a rebar detector with the ability to identify the mid-point between rebars as well as the orientation of rebars
• Optical and acoustical indication of rebar location and minimum cover alert
• This rebar detector offers neighboring bar correction
• Regional settings (metric, imperial)
• Cordless and single handed operation
• Switchable display backlight for dark environments
• A rebar detector with icon-based language independent menus
• Start-up test kit allows user to familiarize him/herself with all functions in a comfortable environment, wasting no time on site

Specification

Power supply	2 x 1.5 V AA (LR6) batteries
Voltage range	3.6 V to 1.8 V
Mechanical data
Dimension	205 x 92 x 41 mm (8 x 3.6 x 1.6 in.)
Weight	330 g (12 oz)
Battery lifetime
Backlight off	> 50 h
Backlight on	> 15 h
Time outs
Sleep mode	30 s
Auto shut down	120 s
Environmental conditions
Temperature range	-10° C to 60° C (14° to 140° F)
Humidity range	0 to 100 % rH
Protection range	IP54
Standards and regulations applied	BS 1881 part 204; DIN 1045; SN 505 262; DGZfP B2

Sensor / Instrument

Tech Specs:

Cover Measuring Range: Up to 185 mm

Cover Measuring Accuracy: ± 1 to 4 mm, depending on cover

Diameter Measuring Range: Up to 63 mm

Diameter Measuring Accuracy: ± 1 rebar size

Available Upgrades: From Profoscope to Profoscope+

Instrument Firmware: 1-Layer Neighboring Rebar Correction (NRC)

Real-time visualization of the rebars beneath the instrument
Visual indication of rebars in close proximity
Identify the mid-point between rebars as well as the orientation of rebars
Optical and acoustical indication of rebar location and minimum cover alert
Neighboring bar correction
Switchable display backlight for dark environments
Start-up test kit allows user to familiarize on all functions in a comfortable environment, wasting no time on site

Pc Software: ProfoLink to download, edit and present the data (Profoscope+ only)

Display: Pixel graphic LCD

Memory: 49’500 measurements (Profoscope+ only)

Connections: USB

Measurement Modes: Rebar location, diameter estimation and cover measurement

Data acquisition (Profoscope+ only)

Reporting software: ProfoLink to download, edit and present the data (Profoscope+ only)
